The Anatomy of a Custom Cable: Connectors, Jackets, Shielding, and More

The Anatomy of a Custom Cable, But inside that simple exterior is an engineered system. Every layer serves a purpose. Every material is chosen for a reason. And every decision from the connector plating to the shield construction determines whether your cable performs for years or fails in months.

At Auctus Electro Assembly, we have been engineering custom cables for over 60 years. This guide dissects the anatomy of a custom cable, layer by layer, so you can specify with confidence.

Layer 1: The Conductor — The Heart of the Cable

The conductor is what carries your signal or power. It seems straightforward, but the choices here ripple through every other decision.

Conductor Material

Copper: The overwhelming standard. Excellent conductivity, reasonable cost, easy to terminate.

Tinned Copper: Copper coated with tin. Resists corrosion and improves solderability. Common in marine or high-humidity environments.

Silver-Plated Copper: Higher conductivity than tin, better for high-frequency signals. Used in RF applications.

Copper-Clad Steel: Stronger than pure copper, but with higher resistance. Used where tensile strength matters more than conductivity.

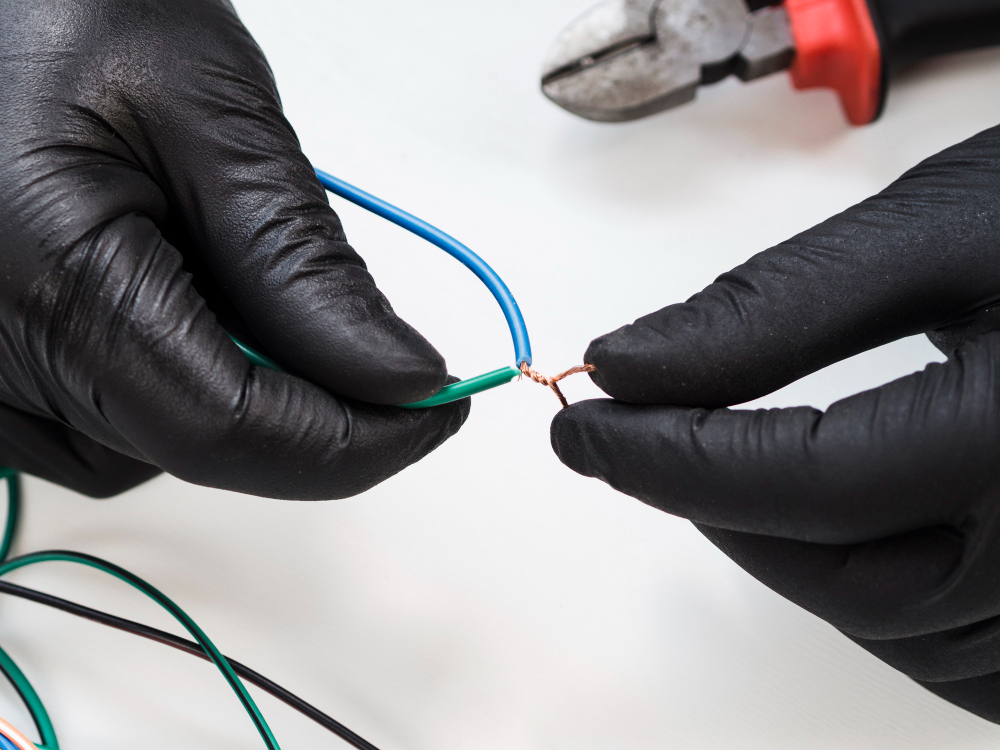

Stranding

Solid: One wire per conductor. Cheaper, but stiff. Breaks under repeated flexing. Best for stationary installations.

Stranded: Multiple small wires twisted together. Flexible. Higher strand counts = more flexibility. Essential for moving applications.

Layer 2: The Insulation — Keeping Signals Separate

Insulation surrounds each conductor, preventing shorts and maintaining signal integrity.

Common Insulation Materials

Material	Key Properties	Typical Applications
PVC	General purpose, flexible, cost-effective	Consumer electronics, general wiring
Polyethylene (PE)	Excellent electrical properties, low loss	High-frequency data, coaxial cables
FEP/PFA (Teflon®)	High temperature (200°C+), chemical resistant	Aerospace, medical, harsh environments
Silicone	Extreme flexibility, wide temperature range	Test leads, high-flex applications
Polypropylene	Low dielectric constant, moisture resistant	Data cables, telecommunications

Layer 3: The Shield — The Guardian of Signal Integrity

The Anatomy of a Custom Cable, In a noisy world, shielding is often non-negotiable. It protects your signal from external interference (EMI/RFI) and prevents your cable from radiating noise into nearby electronics.

Shield Types

What an Industrial Wiring Harness Actually Looks Like

An industrial harness is not a standard harness in a different color jacket. Every component is selected for survivability.

Component	Commercial Grade	Industrial Grade
Conductor	Solid or low-strand	High-strand (Class K or M) for flex life
Insulation	Standard PVC	Oil-resistant, temperature-rated compounds
Jacket	General-purpose PVC	PUR, TPE, or specialty polymers
Shielding	None or minimal	Heavy foil + braid for EMI rejection
Connectors	Standard plastic	Metal, overmolded, IP67-rated
Strain Relief	None	Molded, tapered, flex-optimized

The Connector: The Industrial Weak Point

In industrial environments, the connector is the most vulnerable component. Standard RJ45 or D-sub connectors are not designed for vibration. They work loose. Contacts corrode. Latches break.

Foil Shield: Thin aluminum foil bonded to a polyester backing. Provides 100% coverage. Excellent for high-frequency noise. Poor flex life. Best for static installations.

Braid Shield: Woven copper wires. Provides 70-95% coverage. Excellent flexibility and durability. Good for low-frequency protection. Common in industrial and moving applications.

Combination (Foil + Braid): The best of both worlds. Foil handles high-frequency noise; braid adds strength and low-frequency protection. Used in mission-critical applications.

Spiral Shield: Wrapped copper wires. Good flexibility but less effective at high frequencies. Used in audio and some instrumentation cables.

Shield Termination

A shield is only as good as its termination. A “pigtail” ground can become an antenna. Proper 360-degree termination to a shielded connector backshell creates a true Faraday cage.

The Auctus Approach: We don’t guess about shielding. We analyze your electromagnetic environment and select the appropriate shield type—and we terminate it correctly.

Layer 4: The Jacket — The First Line of Defense

The jacket is what you see and touch. It holds everything together and protects against the outside world.

Jacket Material Options

PVC: General purpose, flexible, cost-effective. Not for extreme temperatures or chemical exposure.

PUR (Polyurethane): Tough, abrasion-resistant, flexible. Excellent for industrial, robotic, and outdoor applications. Resists oils and chemicals.

TPE (Thermoplastic Elastomer): Rubber-like flexibility, good grip. Common on medical devices and test leads.

Neoprene: Tough, weather-resistant. Used in industrial and marine environments.

Silicone: Extremely flexible over wide temperature range. Used in high-heat or cold-flex applications.

Jacket Performance Factors

Temperature Range: A cable rated for -20°C to 60°C will fail in an industrial oven or freezer.

Chemical Resistance: Cutting fluids, hydraulic oil, cleaning solvents—each attacks different jacket materials.

UV Resistance: Sunlight degrades many plastics. Outdoor cables need UV-stabilized jackets.

Abrasion Resistance: Cables dragged across floors or through cable carriers need tough outer layers.

Layer 5: The Connector — The Interface That Matters Most

The connector is where your cable meets the world. It is also the most common failure point.

Connector Selection Criteria

Electrical Requirements: Pin count, current rating, voltage rating, impedance (for RF/data)

Mechanical Requirements: Mating cycles, insertion force, locking mechanism

Environmental Requirements: Ingress protection (IP rating), temperature, chemical exposure

Standards Compliance: Military (MIL-SPEC), industrial (M12, M8), medical (Luer, proprietary)

Connector Termination Methods

Crimp: Consistent, repeatable, ideal for high-volume production. Requires proper tooling and inspection.

Solder: Allows field repairs, but operator-dependent quality. Best for low-volume or prototype work.

Insulation Displacement (IDC): Fast for mass-termination of ribbon cable. Limited wire gauge range.

Overmolding: The connector shell is molded directly over the terminated interface. Creates a seamless, strain-relieved, sealed assembly.

Connector Plating

Gold: Best for corrosion resistance and low contact resistance. Required for low-voltage signals.

Tin: Cost-effective, but can form insulating oxide layers. Not for low-voltage or high-reliability.

Nickel:  Hard, durable, corrosion-resistant. Common on circular industrial connectors.

Layer 6: Strain Relief — The Unsung Hero

The junction between cable and connector is the most mechanically stressed point. Without strain relief, every flex and pull transmits directly to the delicate terminations inside.

Strain Relief Methods

Molded Strain Relief: The jacket is overmolded to create a tapered, flexible transition. Best for high-flex applications.

Heat-Shrink Strain Relief: Adhesive-lined heat shrink creates a reinforced transition. Good for field assemblies.

Mechanical Clamps: The cable jacket is clamped to the connector backshell. Pull forces transfer to the clamp, not the terminations.

The Auctus Approach: We engineer strain relief into every custom cable. It is not an afterthought—it is a design element.

Your Next Step

You do not need to become a cable engineering expert. You need a partner who already is.

Tell us about your application. We will recommend the right conductor, insulation, shielding, jacket, and connector—and build you a custom cable that performs exactly as specified.

Contact Auctus Electro Assembly today.
