Engine Wiring Harness
Safeguarding Powertrain Reliability with a Heavy-Duty Engine Wiring Harness
In modern automotive design, heavy machinery assembly, and aerospace engineering, the powertrain demands total electrical synchronization. Dozens of critical fuel injectors, temperature sensors, pressure monitors, and ignition coils must fire in perfect microsecond intervals. Consequently, routing these complex signals through a ruggedized engine wiring harness is a foundational operations priority across the USA. These highly specialized electrical webs group thousands of individual insulated wires into a single organized trunk line. Therefore, installing an advanced powertrain loom directly protects delicate sensor paths from intense physical vibrations and high operational heat blocks.
Defending Critical Sensory Networks Against Thermal Breakdown
Running unprotected bare electrical lines straight across a high-temperature engine block creates immense structural breakdown risks. Ambient engine temperatures frequently spike rapidly, causing low-grade plastic insulations to melt, short-circuit, and trigger catastrophic system failures. However, a specialized engine wiring harness eliminates these extreme environmental hazards completely by wrapping internal bundles in military-grade protection. This high-performance layering preserves uncompromised electrical paths despite continuous exposure to boiling fluids and rough road vibrations. This robust physical foundation allows you to route dependable Engine Bay Pathways through your high-vibration engine compartments safely.
Technical Advantages of Utilizing a Premium Engine Wiring Harness
Sourcing your high-stress powertrain grids from a certified domestic contract manufacturing plant allows your equipment lines to perform flawlessly. Every single production run follows automated quality routines to ensure complete insulation seal integrity across your entire vehicle fleet.
Implementing Advanced High-Temperature Shield Overwraps
First, protecting delicate communication wires from radiant engine heat requires advanced industrial insulation choices that standard lines lack. An elite engine wiring harness incorporates specialized fiberglass braiding, corrugated loom piping, or heavy-walled Raychem heat-shrink tubing layers. Consequently, your internal copper strands handle continuous operating temperatures exceeding 125 degrees Celsius without cracking or losing flexibility. Securing this exact level of advanced physical medium engineering is highly straightforward when you partner with a premier Powertrain Cable Firm.
Total Defense Against Chemical and Fluid Penetration
Second, operating spaces inside engine bays are continuously subjected to spraying oils, hot coolants, brake fluids, and raw fuels. Standard commercial wire coverings will soften rapidly or dissolve entirely when soaked in these aggressive chemical solvents over time. A ruggedized engine wiring harness utilizes fluid-resistant cross-linked polyethylene insulation paired with specialized watertight rubber over molds at every connector junction. This comprehensive sealing ensures your critical Custom Termination Design remains fully operational despite constant chemical contact during long field operations.
Crucial Quality and Testing Standards for Powertrain Looms
Vetting the automated validation baselines of your production partner is vital for maintaining strict safety compliance in heavy transportation. Because a single broken pin can stall an entire transport truck, your electrical webs must pass rigorous diagnostics.
- 100% Automated Pull-Force Tests: Validates that machine-crimped terminal plugs hold fast under extreme mechanical pulling strain.
- Submersion Testing for Junctions: Confirms that multi-pin connector housings completely block out pressurized water leaks during deep cleaning.
- High-Potential Insulation: Subjects the assembly to elevated voltages to detect microscopic pinholes in wire jackets.
- Acoustic Vibration Sweep Matching: Ensures all branches stay securely anchored inside heavy structural conduits during rough operations.
Comprehensive Power Grid and Infrastructure Alignment
Building an efficient automated layout requires tracking how your custom device paths connect with main utility feeds. To simplify this complex design path, smart engineering groups pair their signal networks with an optimized Integrated Loom Architecture. This combination delivers a complete, drop-in utility infrastructure capable of carrying both heavy motor currents and ultra-pure data lines cleanly. Sourcing these integrated paths from a single domestic facility ensures all internal termination components align perfectly.
Future Engineering Integration in Intelligent Automation Hubs
As modern computing systems transition toward autonomous decision-making loops, basic interface links must evolve to handle smart tracking. Modern data lines do not just route passive voltages; they manage high-speed communication lines across smart equipment networks.
Interconnecting Diagnostic Loops to Central Processing Units
To coordinate these real-time engine telemetry loops, advanced networks route their sensor paths straight into central processing panels. Fabricating these intricate connections requires a flawless Etched Substrate Assembly configuration that keeps delicate microchips safe from intense environmental heat and vibrations. Therefore, your automated processing networks can maintain rapid communication speeds without experiencing field data loss. This advanced level of hardware shielding protects your primary processing cards from sudden field crashes.
Hardened Environmental Panel Fabrication Services
Finally, your raw computing hubs and high-frequency termination blocks require a rugged physical shield to block external threats like corrosive moisture or factory dust. Elite contract production facilities pair their internal line layouts with complete Electrical Housing Fabrication. This full-service approach allows you to source both your technical lines from an advanced engine wiring harness blueprint and your weather-proof NEMA-rated metal boxes from a single trusted provider.
Frequently Asked Questions (FAQs)
1.What causes factory engine wiring harness to degrade over time?
The main culprits are continuous engine thermal cycling, severe road vibrations, and exposure to corrosive chemicals like oil or road salts. Consequently, older insulation jackets become brittle and crack.
2.Why do heavy-duty harnesses utilize braided fabric loom overlays?
Braided coverings deliver exceptional abrasion resistance against sharp metal engine edges while allowing the bundle to remain highly flexible. Therefore, it protects lines better than cheap plastic tape.
3.Can these custom powertrain looms accommodate high-speed data protocols like CAN buses?

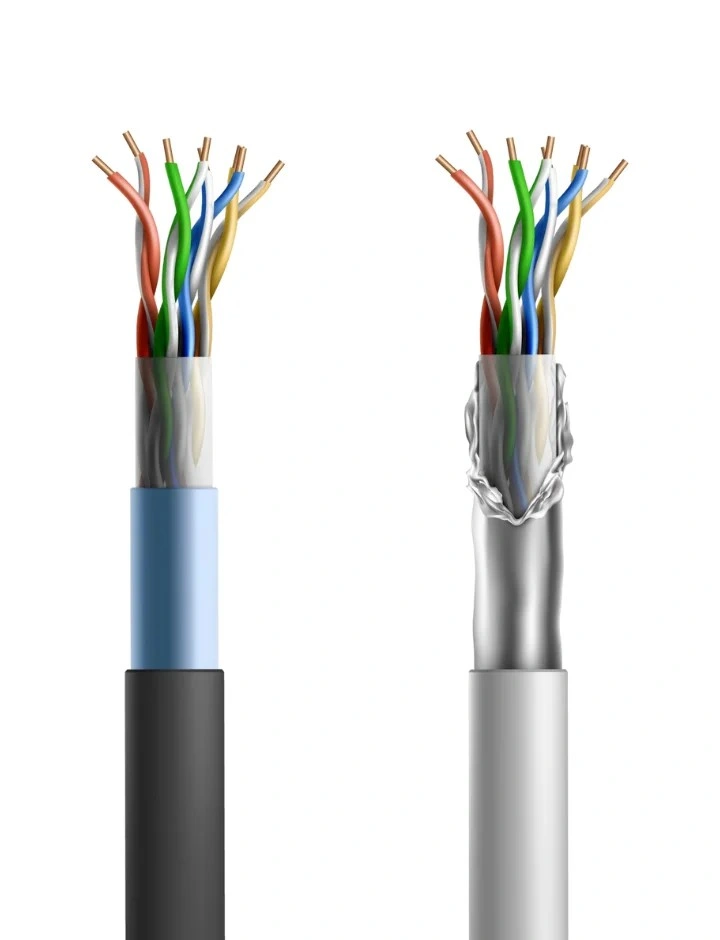

Absolutely. Manufacturers integrate precision twisted-pair wires with dedicated foil shielding layers inside the main trunk to transmit digital CAN bus signals. Consequently, they prevent electromagnetic noise interference.
4.How do specialized rubber boot over molds improve engine harness lifespans?
Over molded boots completely lock out water droplets, dust, and engine fluids at the most vulnerable structural point—the connector entry. Therefore, they stop terminal pins from rusting.
5.Where can I find certified custom interconnect cable manufacturing in the USA?
You can partner with established domestic contract manufacturers like Auctus Electro to upload your engineering schematics and receive a professional technical production consultation.
Conclusion
In conclusion, organizing your powertrain infrastructure through a premier engine wiring harness design is a critical investment in your company’s operational lifespan. By prioritizing high-temperature shield overwraps, total chemical defense, and strict international quality testing, you protect your infrastructure assets from field failure. A premier contract partner like Auctus Electro provides the advanced precision engineering required to bring your most complex hardware concepts to life. Do not let unverified, low-grade components bottleneck your automated system’s scaling potential. Choose an engineered connectivity solution that drives your business forward with absolute safety, reliability, and efficiency.
