Trailer Hitch Wiring Harness: The Complete Guide to Safe Towing Connections
In electronic connectivity, the mini B USB cable served as a dominant standard for compact devices for nearly two decades — and it still appears in industrial, medical, and specialty products today. Whether you are sourcing cables for legacy equipment or specifying connectors for a new build, this guide covers what you need to know. At Auctus Electro Assembly, we manufacture precision custom cable assemblies including mini B USB configurations for industrial, gaming, medical, and consumer electronics customers.
At Auctus Electro Assembly, we manufacture precision custom wire harness assemblies including trailer hitch wiring for automotive, commercial fleet, and specialty vehicle applications. Here is everything you need to know.
What Is a Trailer Hitch Wiring Harness?
A trailer hitch wiring harness is a cable assembly that connects a tow vehicle’s electrical circuits to the lighting and braking systems of a trailer. It routes turn signals, brake lights, running lights, and — in heavier towing setups — electric brake controller signals and auxiliary 12V power through a standardized multi-pin connector mounted at the vehicle’s rear.         Â
Quality harnesses use a T-connector design that taps into the vehicle’s tail lamp wiring without cutting or splicing factory circuits. This preserves the integrity of the OEM wiring while delivering a clean, weatherproof connection point for any compatible trailer.
Types of Trailer Wiring Connectors
Matching the right connector to your trailer type is the first step in any trailer hitch wiring harness selection:

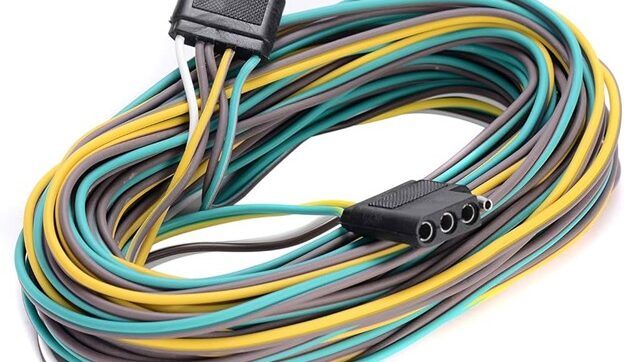

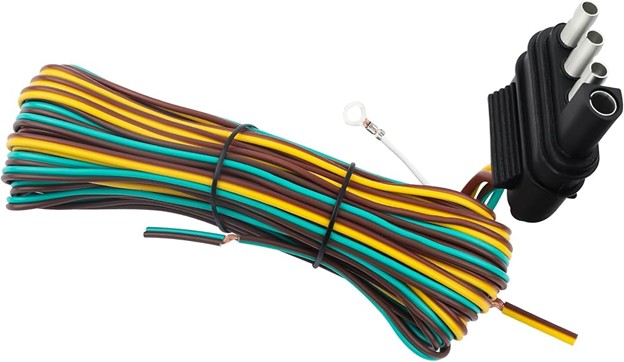

4-Pin Flat Connector
Standard for light-duty trailers — utility trailers, small boat trailers, and single-axle campers. Carries left turn/brake, right turn/brake, running lights, and ground.
5-Pin Flat Connector
Adds a dedicated reverse light circuit. Used on larger boat trailers, enclosed cargo trailers, and any trailer equipped with a reverse camera or backup lights.
7-Pin Round Connector
The industry standard for heavy-duty towing — RV campers, horse trailers, car haulers, and commercial equipment. Adds trailer brake controller signal, auxiliary 12V power, and a dedicated ground to the full lighting set.
What Makes a Quality Trailer Hitch Wiring Harness?
A professionally manufactured trailer hitch wiring harness includes these essential elements:
- Weatherproof connector housing: Sealed against moisture, road spray, and corrosion for a component permanently exposed to the elements.
- Correctly gauged conductors: Wire gauge matched to each circuit’s current draw, preventing voltage drop and overheating.
- Corrosion-resistant terminals: Protected against road salt, water, and thermal cycling throughout the vehicle’s service life.
- Strain relief and abrasion-resistant jacketing: Prevents chafing at connector entries and along the harness routing path.
- 100% electrical testing: Every circuit tested for continuity and function before shipment — zero defects leaving the facility.
FAQs About Trailer Hitch Wiring Harness
1.What does a trailer hitch wiring harness do?
It connects the tow vehicle’s electrical system to the trailer’s lights and electric brakes, routing turn signals, brake lights, running lights, and brake controller signals through a rear connector.
1.What devices still use mini B USB cables?
Industrial test equipment, older digital cameras, GPS units, early gaming controllers, and specialty electronics made before 2012 commonly use mini B USB.
2.What is the difference between a 4-pin and 7-pin trailer connector?
A 4-pin handles basic lighting for light trailers. A 7-pin adds brake controller signal, 12V auxiliary power, and dedicated ground — required for trailers with electric brakes.
3.Will a trailer wiring harness fit my vehicle without cutting factory wiring?
Yes. A T-connector harness plugs directly into your vehicle’s existing tail lamp connectors without any cutting or splicing of factory circuits.
4.Can Auctus Electro Assembly manufacture custom trailer hitch wiring harnesses?
Yes. We build custom harnesses to any connector type, length, and vehicle-specific pinout with full electrical testing included on every unit.
5.How do I know if my trailer hitch wiring harness needs replacing?
Intermittent trailer lights, corroded pins, cracked jacketing, and blown fuses during towing are the key signs that a harness needs replacement.
Conclusion
A well-built trailer hitch wiring harness is not a place to cut corners. It is a safety-critical component that must work reliably in rain, mud, road salt, and temperature extremes — every single time you connect a trailer. Investing in a quality harness from a specialist manufacturer protects drivers on the road, keeps commercial fleets compliant, and eliminates the frustrating intermittent failures that cheap harnesses deliver.
At Auctus Electro Assembly, we build custom trailer hitch wiring harnesses to your exact specifications with weatherproof construction and 100% testing before every shipment. Contact us today to request a quote.
