End-to-End Harness Traceability
Traceability in Automotive Wiring Harness Manufacturing: From Raw Material to Finished Assembly
Now multiply that by 50,000 units. The math is devastating and it often starts with one untraceable component in one wiring harness.Â
In automotive manufacturing, traceability isn’t a paperwork exercise. It is the difference between a contained quality issue and a catastrophic recall. At Auctus Electro Assembly, with over 60 years of industry experience, we treat traceability as a core manufacturing discipline not an afterthought.Â
Why Traceability Matters More in Automotive
When a wiring harness fails in a passenger vehicle, the consequences cascade:Â
| Failure Point | Potential Result |
| Airbag deployment circuit | Life-safety risk, NHTSA investigation, mandatory recall |
| Powertrain control signal | Stall risk, field failures, warranty claims |
| Brake light circuit | Safety violation, accident liability |
Without traceability, you cannot isolate the root cause, limit the recall population, or defend your quality system to regulators.Â
What Traceability Actually Looks Like at Auctus
Traceability is not a single scan at the end of the line. It is a layered system of verification points that follows every component from receiving to shipment.Â
Layer 1: Raw Material ReceivingÂ

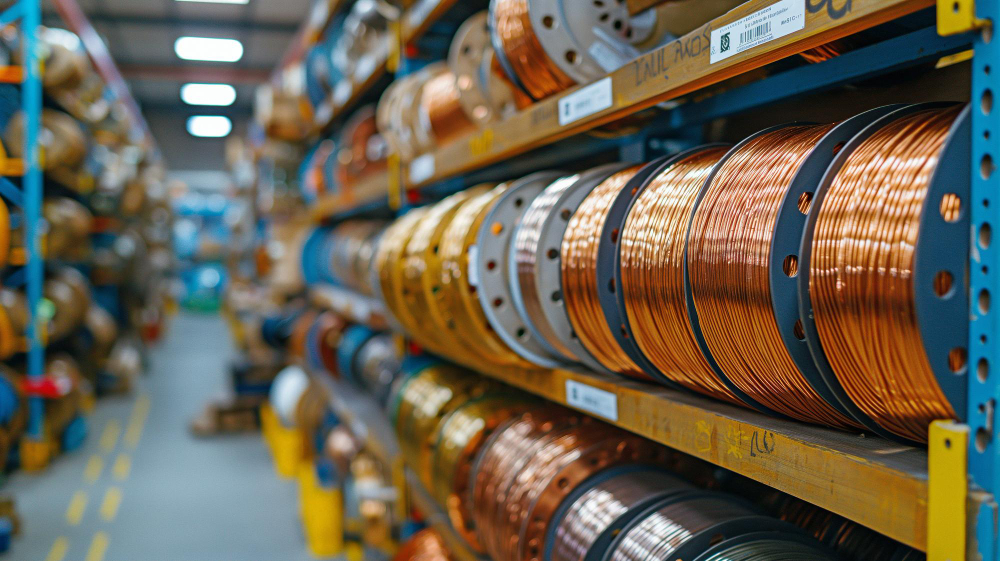

Every reel of wire, every bag of terminals enters our system with:Â
- Manufacturer certification documentsÂ
- Date code trackingÂ
- Receiving inspection resultsÂ
- Unique internal lot numbersÂ
The goal: If a material issue is discovered six months later, we know exactly which assemblies contain that specific lot.Â
Layer 2: Work Order AssignmentÂ
- Locks the BOM to specific material lotsÂ
- Generates a unique work order traveler with barcode trackingÂ
- Assigns operator credentials to every stepÂ
- Stores machine parametersÂ
Layer 3: In-Process VerificationÂ
| Operation | Data Captured |
| Wire cutting | Length verification, operator ID |
| Terminal crimping | Crimp height, pull test results |
| Connector insertion | Position verification |
| Electrical testing | Continuity, hi-pot, resistance values |
Layer 4: Final Assembly and TestÂ
Before the harness is released:Â
- Serialized label appliedÂ
- Final test results linked to serial numberÂ
- Visual inspection records storedÂ
Layer 5: Ongoing Record RetentionÂ
The Technology Behind Traceability
You cannot achieve true traceability with paper travelers. Auctus uses:Â
- ERP-integrated quality managementÂ
- Barcode scanning at every operationÂ
- Automated data capture from test equipmentÂ
- Machine parameter monitoringÂ
- Digital work instructionsÂ
This is the infrastructure required to deliver automotive-grade traceability.Â
What Traceability Enable
1. Rapid Root Cause AnalysisÂ
When a field failure occurs, we can identify every assembly built from the same material lot, review machine settings, and determine if the issue is random or systemic.Â
This limits recalls to the affected population—not the entire production history.Â
2. Supplier AccountabilityÂ
Traceability allows us to match failed components to specific supplier lots and pursue warranty recovery from upstream vendors.Â
3. Continuous ImprovementÂ
Traceability data reveals patterns: which operators achieve the lowest defect rates, which machines need calibration, which materials show the highest process stability.Â
4. Customer ConfidenceÂ
When your OEM customer audits our facility, we can show traceability for any serial number in minutes.Â
Auctus Electro Assembly — Built for Automotive
We have served the automotive industry for over 60 years. Our traceability infrastructure includes:Â
- Lot-level material tracking from receipt to shipmentÂ
- Operator-attributed production recordsÂ
- Machine-parameter data retentionÂ
- Serialized final test resultsÂ
- 10+ year electronic record retentionÂ
- IATF 16949-aligned quality systemsÂ
Ready to partner with a wiring harness manufacturer who treats traceability as seriously as you do?Â
Contact our automotive engineering team today.Â
Tell us about your program. We will show you how 60+ years of experience translates into systems you can trust.
